What A Tripping Safety Switch Is Telling You
If you have just typed safety switch keeps tripping Brisbane electrician into your phone while half the house sits in the dark, here is the short answer. The safety switch is doing its job. It has sensed current leaking out of a circuit and cut the supply in a fraction of a second. Something on that circuit is faulty, and the trip is the symptom rather than the problem.
That distinction changes what you do next. A switch that drops once during a storm and then holds is telling a different story to one that lets go at the same time every morning, or one that will not stay in at all. On these callouts we are rarely replacing the device itself. The work is finding the appliance, cable or connection that is quietly leaking to earth, then proving it with a test result rather than a guess.
Safety Switches And Circuit Breakers Do Different Jobs
A safety switch, or RCD, protects people. It compares the current flowing out along the active with the current returning through the neutral and disconnects when the difference means electricity has found another path to earth, possibly through someone. A circuit breaker protects the wiring from overload and short circuits. The two faults look identical at the board and have almost nothing in common underneath.
| Device | What It Protects | What Makes It Trip |
| Safety Switch (RCD) | People | Current leaking to earth, even a very small amount |
| Circuit Breaker | Cables and the switchboard | Too much current: an overload or a short circuit |
| RCBO | Both, on one circuit only | Either fault, without taking the rest of the house with it |
The Wiring Rules, AS/NZS 3000, set the RCD requirements for household circuits, and Queensland’s Electrical Safety Regulation 2013 makes compliance with those rules mandatory for installation work in this state, as the Electrical Safety Office sets out in its guidance on the Wiring Rules. The leakage needed to trip one is tiny, which is why a slightly damp outdoor power point can take out a whole circuit.
The Pattern Of The Trip Names The Fault
Plenty of the people searching safety switch keeps tripping Brisbane electrician are doing it the morning after a storm, and the timing is the strongest clue they own. Before anyone opens a switchboard, when the trip happens narrows the cause faster than any other detail. Note the time of day, the weather, and what was switched on in the minute before the power went.
| When It Trips | Most Likely Cause | First Thing To Check |
| Mid morning on sunny days | Solar inverter or rooftop DC wiring | Switch off the solar AC isolator and see if the tripping stops |
| Overnight or before dawn | An off peak hot water element leaking to earth | Whether the water is lukewarm the next morning |

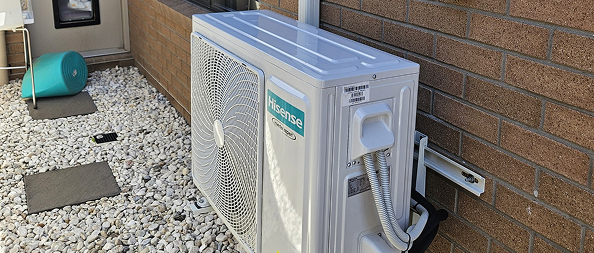

| The instant the air con starts | Compressor insulation breaking down under start up load | Whether it also trips after running happily for twenty minutes |
| A day or two after heavy rain | Water in an outdoor power point, garden light or outdoor unit | Outdoor GPOs, light fittings and the outdoor unit terminal cover |
| Randomly on humid days | Accumulated leakage across the whole circuit creeping toward the trip point | Nothing at home, this one needs a clamp meter on the circuit |
Modern homes leak differently to the ones these boards were built for. Solar inverters, EV chargers, induction cooktops and inverter split systems all push a small amount of DC residual current into the installation, and an older Type AC safety switch can be desensitised by it, so it either nuisance trips or fails to see a genuine fault. The fix is a Type A device, not another reset. If your trouble started within weeks of a new system going in, that is where we look first, and our guide on checking whether solar panels need replacement covers the rooftop side.
Ten Minutes Of Safe Testing Before You Call
You can narrow this down yourself without touching anything inside the board, and doing so often cuts down the time we spend on site. If you searched safety switch keeps tripping Brisbane electrician because the switch will not stay on at all, skip this and read the next section instead.
- 1. Note What Went Off: which switch dropped, and which rooms and appliances lost power with it.
- 2. Unplug Everything On That Circuit: appliances, chargers, the fridge, the things you never normally turn off.
- 3. Reset Once: push the switch firmly down and back up. If it holds, the fault is in something you just unplugged.
- 4. Reintroduce One Item At A Time: leave a few minutes between each, because some faults only appear once an element or motor warms up.
- 5. Isolate Solar And Hot Water: if it still trips with nothing plugged in, switch off the solar AC isolator and the hot water circuit, then try again.
Safety Warning: never tape, wedge or hold a safety switch in, and never treat repeated resetting as a fix. Each reset re energises a circuit that has already proven it is leaking to earth, and the third or fourth reset can be the one someone is touching a tap or an appliance during.
Emergency Tonight Or A Booking This Week
Call Josh on 0431 663 251 or Corey on 0407 814 821 straight away, at any hour, if there is a burning smell, scorching or sparking at a power point, water sitting in or near the switchboard, or a switch that will not reset no matter what you unplug. Those are after hours emergency electrical callouts and we prioritise them, aiming for same day or next day attendance wherever we can. Around the southern end of the coast, our 24 hour no power help covers the same faults.
An intermittent trip on one circuit that resets and holds can wait for a booked appointment, provided you leave that circuit off in the meantime. Move the fridge and freezer onto a healthy circuit with a heavy duty lead rather than nursing the faulty one along. Everything past unplugging appliances belongs to a licensed contractor: under the Electrical Safety Act 2002, performing electrical work in Queensland without a licence is illegal, which the Electrical Safety Office states plainly in its licensing rules.
Inside A GreenGrid Fault Finding Visit
Fault finding is measurement, not guesswork. We clamp each circuit to read the leakage actually flowing to earth and compare it against the trip threshold, which is how a house that sits just under the limit gets caught out on a humid day. Then, with the circuit isolated, we run an insulation resistance test, and a low reading tells us the cable or appliance winding is breaking down rather than merely damp.
GreenGrid Electrical holds Queensland electrical licence 1501553, NSW licence 479006C and ARCtick L172115, and every electrician on our vans is licensed, qualified and insured. We are based at 48 Newman St, Camira on Brisbane’s southern side, and between Josh and Corey we cover the stretch from the Gold Coast up through the city and across to Ipswich, taking in Logan and the Redlands along the way. Anyone searching safety switch keeps tripping Brisbane electrician wants the same two things: the power back on tonight, and an honest answer about why it went off.
Our Google reviews currently average five stars. Anita Maxwell wrote that “They have helped me out many times even after hours. Great pricing and top notch work.” Andrew Claydon wrote that “These guys are fantastic, helpful, knowledgeable and after checking around they proved to be good value as well.” Once the fault is cleared, press the test button on each safety switch regularly and have the board looked at if it is crowded, warm or full of rewireable fuses. Queensland also ties safety switch obligations to key moments in a property’s life, including when a home is built, sold or leased, or when electrical work is carried out, as set out by the Electrical Safety Office guidance on safety switches. To book, call Josh on 0431 663 251 or Corey on 0407 814 821 for a free quote.
Frequently Asked Questions
Why Does It Trip With Nothing Plugged In?
Because plenty of your installation is hardwired. Hot water elements, ovens, cooktops, exhaust fans, downlights, LED drivers, pool equipment, solar inverters and the fixed wiring itself all sit on circuits you cannot unplug. Rodent damaged or aged cable insulation in the roof space is a common one in older Brisbane homes.
Do I Need A Whole New Switchboard?
Often not. If one circuit is the culprit and the board is otherwise sound, fitting an RCBO to that circuit solves the problem and keeps the rest of the house live during future faults. A board that is full, has no spare ways, or still runs rewireable fuses is a different conversation, and our article on checking whether switchboards need replacement walks through the signs.
Can One Appliance Really Take Out The House?
Yes, and a faulty appliance is a very common cause we find. Kettles, toasters, washing machines, fridges and old extension leads top the list. If several circuits share one safety switch, a single leaking appliance takes the lot with it, which is a good argument for splitting the board. Our domestic electrical services cover that work.
